The Max 550W Monocrystalline Solar Panel embodies cutting-edge solar technology, tailored to fulfill the energy demands of large-scale, high-efficiency systems. Utilizing advanced monocrystalline silicon cells, it delivers exceptional power output and remarkable energy conversion, even under low-light conditions.
Parameters

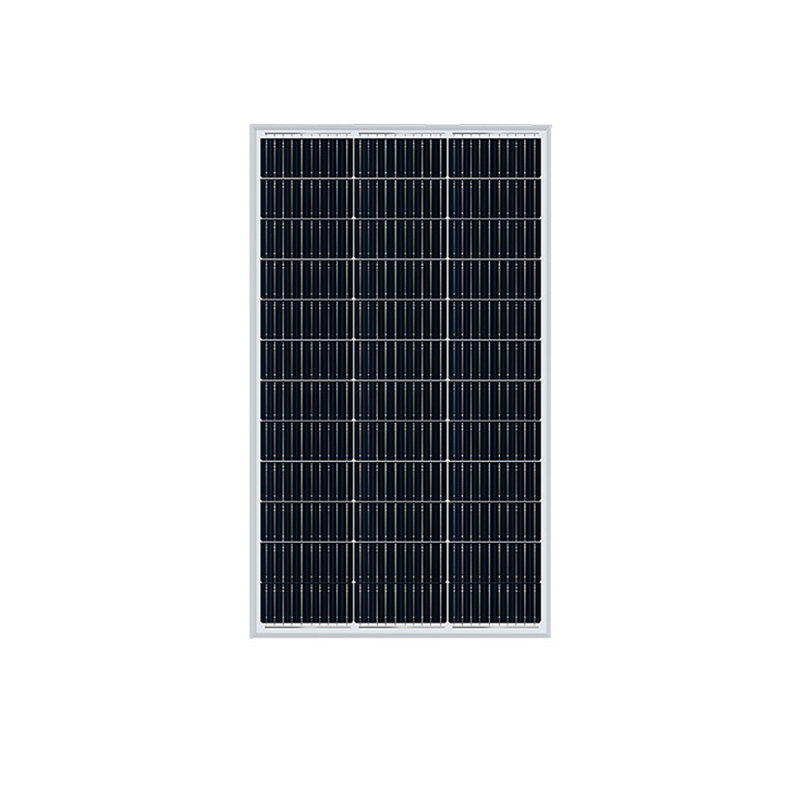

150W solar panel
Name | 150W Solar panel |
Max output power |
150W |
Max working voltage |
18V |
Max working current |
7.70A |
Open circuit voltage |
23.4V |
Short circuit current |
7.92A |
Dimension | 1150*670*30mm |
Weight | 10kg |

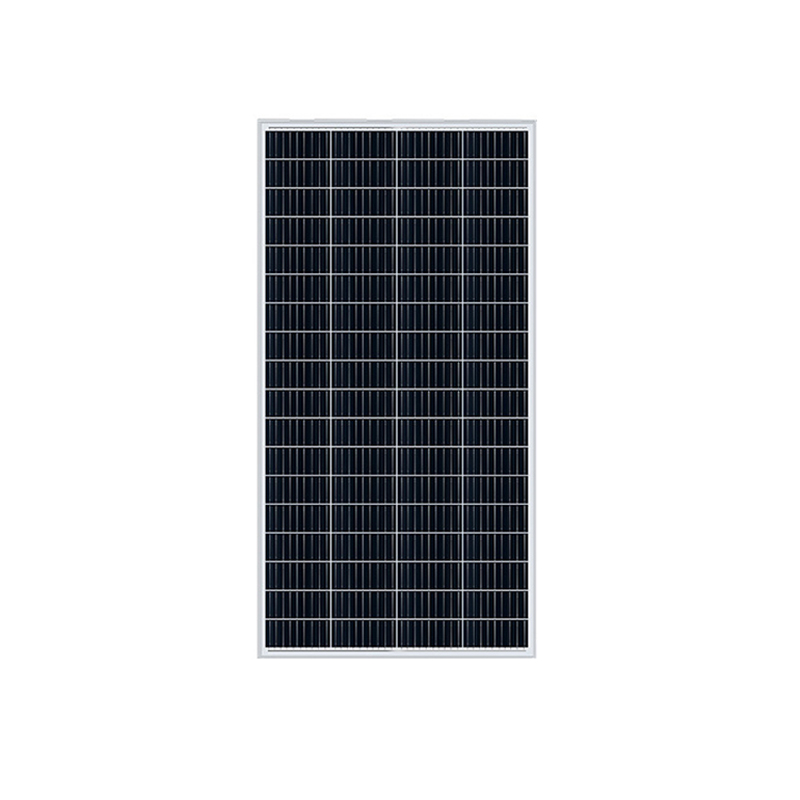

200W solar panel
Name | 200W Solar panel |
Max output power |
200W |
Max working voltage |
18V |
Max working current |
11.1A |
Open circuit voltage |
21.6V |
Short circuit current |
12.55A |
Dimension | 1510*670*30mm |
Weight | 12kg |

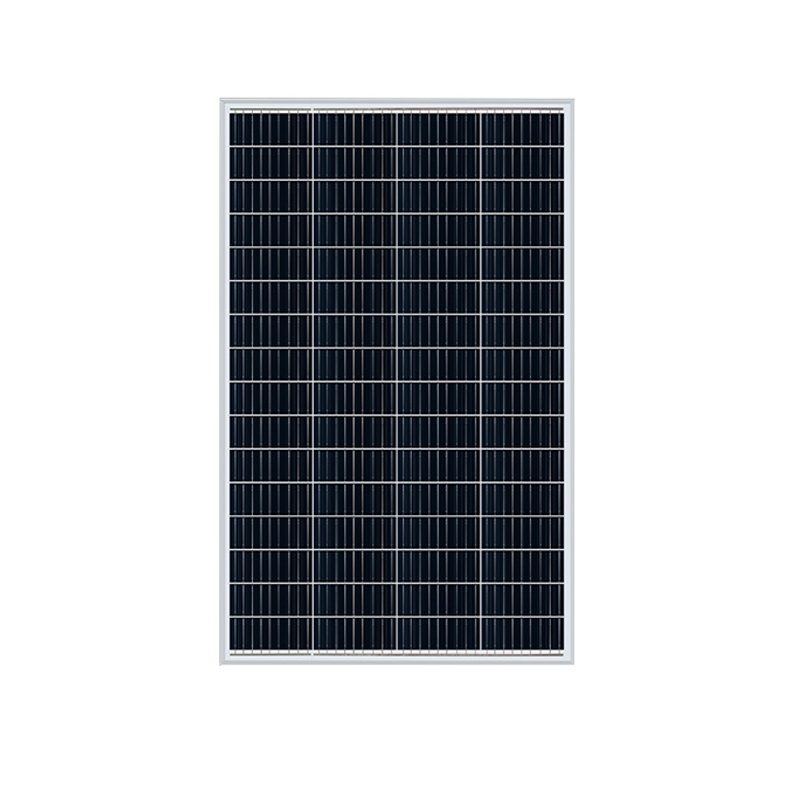

250W solar panel
Name | 250W Solar panel |
Max output power |
250W |
Max working voltage |
19.5V |
Max working current |
12.8A |
Open circuit voltage |
23.9V |
Short circuit current |
13.3A |
Dimension | 885*1440-35mm |
Weight | 13.5kg |

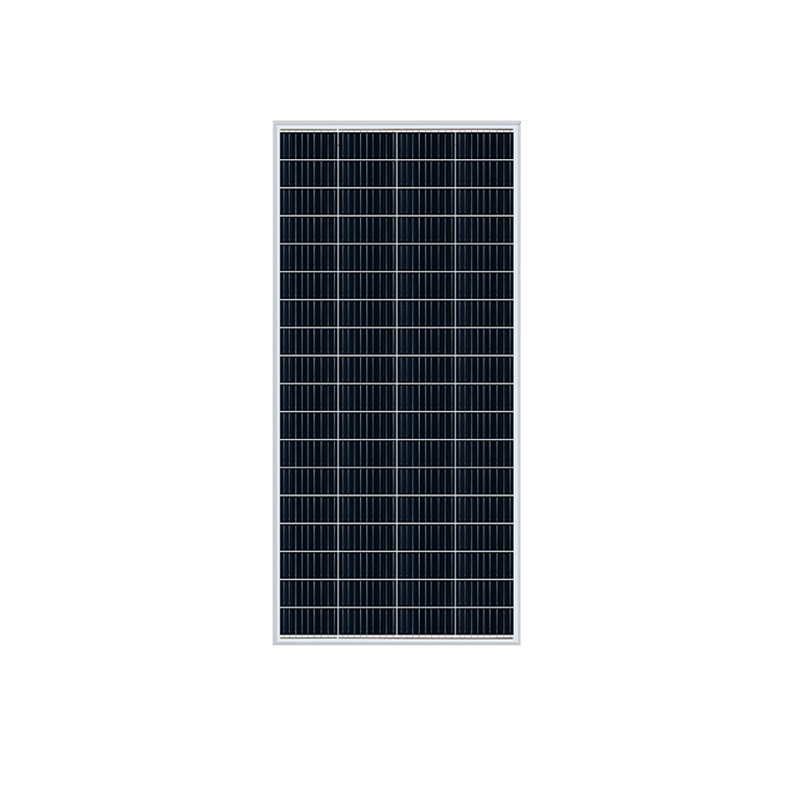

300W solar panel
Name | 300W Solar panel |
Max output power |
300W |
Max working voltage |
18V |
Max working current |
14.8A |
Open circuit voltage |
23.5V |
Short circuit current |
15.6A |
Dimension | 1700*885*30mm |
Weight | 15kg |

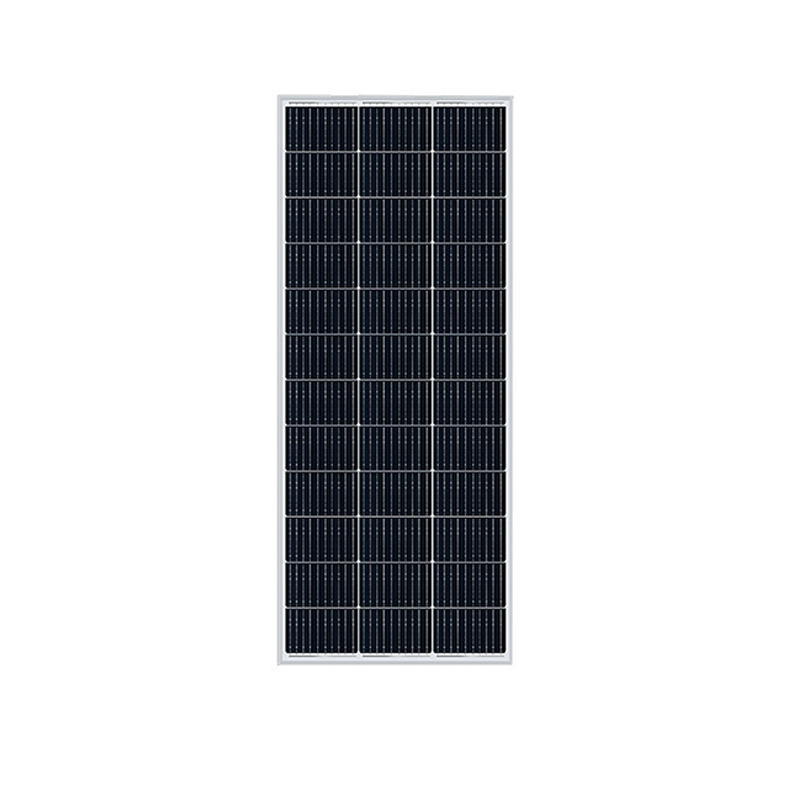

330W solar panel
Name | 330W Solar panel |
Max output power |
330W |
Max working voltage |
40.2V |
Max working current |
8.07A |
Open circuit voltage |
47.1V |
Short circuit current |
8.36A |
Dimension | 1860*885*35mm |
Weight | 16.5kg |

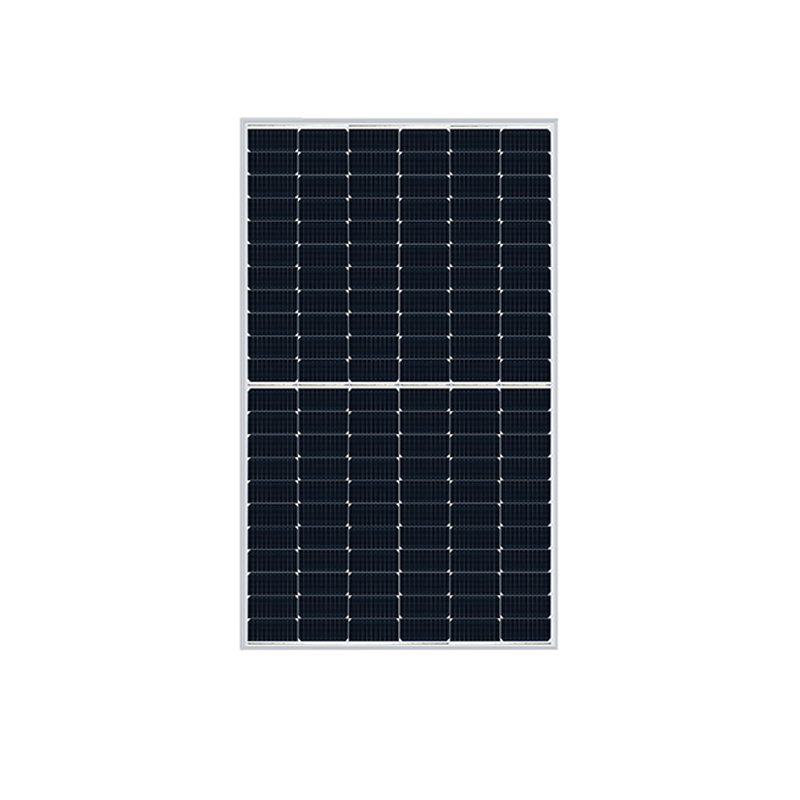

450W solar panel
Name | 450W Solar panel |
Max output power |
450W |
Max working voltage |
34.6V |
Max working current |
13.01A |
Open circuit voltage |
41.4V |
Short circuit current |
13.68A |
Dimension | 1909*1134*35mm |
Weight | 24kg |

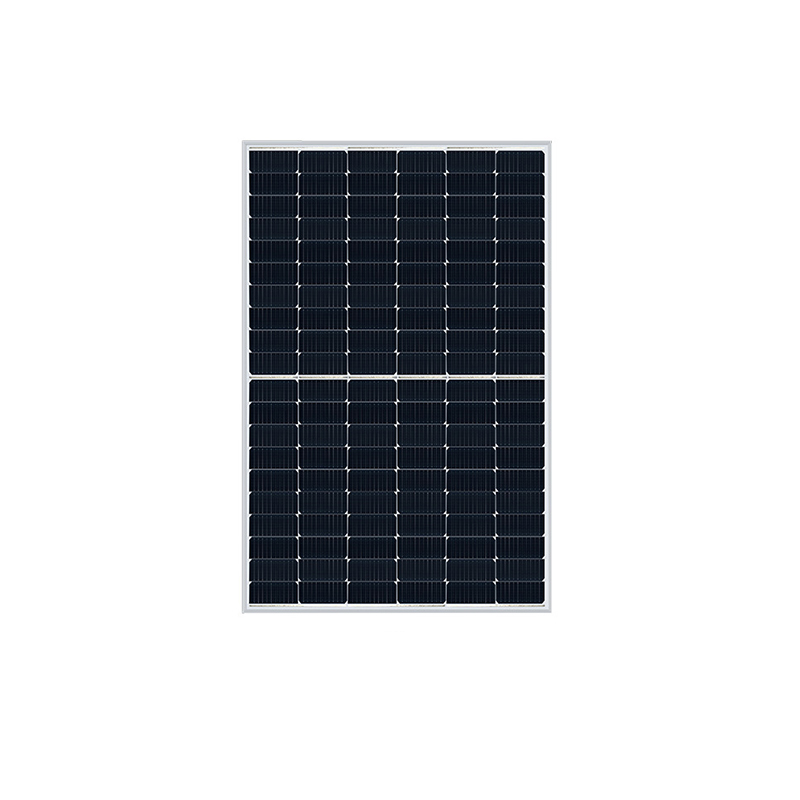

540W solar panel
Name | 540W Solar panel |
Max output power |
540W |
Max working voltage |
36.0V |
Max working current |
12.9A |
Open circuit voltage |
49.64V |
Short circuit current |
13.93A |
Dimension | 2278*1134*35mm |
Weight | 16.5kg |
